What Are the Different Types of Industrial Sensors?

“What sensor do I need?” is usually the wrong first question, because there isn’t one category called “sensor” there are at least half a dozen distinct technologies, each solving a completely different measurement problem. Understanding the difference between them is what separates a monitoring system that actually catches problems early from one that generates a lot of data nobody trusts.

At XTRAN, we work across almost every sensor category on this list on any given month, often several at once on the same site. Here are the 10 questions we find ourselves answering most often when a customer asks us to explain what’s actually out there, illustrated with examples from real deployments.

1. Why Isn’t “Industrial Sensor” Just One Thing?

An industrial sensor is any device that detects a physical or chemical property temperature, pressure, motion, level, position and converts it into a signal that can be read, logged, or acted on. The category is broad by design, because industrial sites need to measure almost every physical property that exists. The practical mistake we see most often isn’t picking a bad sensor within a category; it’s picking the wrong category altogether, because the underlying problem wasn’t diagnosed correctly first.

2. What Do Temperature Sensors Actually Cover?

Temperature is one of the most common industrial measurements, and also one of the most misunderstood, because “temperature sensor” covers several very different technologies with different accuracy, speed, and environmental tolerances.

Type	How It Works	Typical Use
Thermocouple	Voltage generated across two dissimilar metal junctions	Wide range, harsh environments, fast response
RTD (Resistance Temperature Detector)	Resistance change in a metal element (usually platinum)	High-accuracy, stable, lower-temperature process monitoring
Thermistor	Resistance change in a semiconductor element	Lower-cost, narrower range, HVAC and general plant use
Infrared / non-contact	Detects radiated heat without touching the surface	Moving parts, rollers, hard-to-access or hazardous surfaces

Case in point: rethinking a roller temperature problem

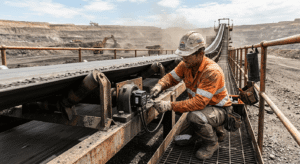

A mining customer had been using surface-mounted thermocouples to monitor conveyor idler rollers, but the readings were inconsistent because the sensor wasn’t in real thermal contact with the point that actually overheats first. Moving to an embedded roller-tip sensor gave a direct, reliable reading from inside the component itself, rather than an indirect guess from the outside.

3. What Are Pressure Sensors and Transducers?

Pressure sensors measure force per unit area in a gas or liquid, and they’re everywhere hydraulics, pneumatics, tanks, pipelines, pumps. The distinction that trips people up is gauge versus absolute versus differential pressure.

• Gauge pressure – measured relative to atmospheric pressure. The most common industrial type.
• Absolute pressure – measured relative to a total vacuum. Used where atmospheric variation would skew the reading.
• Differential pressure – measures the difference between two points, commonly used for flow measurement and filter monitoring.

Wet-wet differential transducers, in particular, are specified incorrectly more often than any other pressure sensor type we see, because the application actually needed a simple gauge reading, and the differential unit added cost and complexity without providing useful information.

4. What Do Vibration Sensors Actually Detect?

Vibration sensors, accelerometers, velocity sensors and proximity probes pick up mechanical motion that indicates wear, imbalance or impending failure long before it’s visible or audible to a person walking the plant.

Case in point: catching a bearing fault three weeks early

On a defence-sector asset, a vibration sensor on a rotating shaft picked up a rising high-frequency signature consistent with early-stage bearing wear, weeks before the fault would have produced any noticeable noise or heat. The replacement was scheduled during planned downtime instead of becoming an unplanned outage, which is the entire economic case for vibration monitoring in one example.

5. How Do Level Sensors Differ From Each Other?

Level sensors tell you how much liquid, powder, or bulk material is in a tank, silo, or vessel, and the right technology depends heavily on what’s being measured.

Type	Best Suited To	Limitation
Ultrasonic	Non-contact liquid or solids level, clean environments	Affected by dust, foam or steam in the vessel
Radar	Liquids and solids, including harsh or dusty conditions	Higher cost than ultrasonic for simple applications
Hydrostatic / pressure-based	Liquid level via pressure at the base of a vessel	Requires a known, stable fluid density
Capacitive	Conductive or non-conductive liquids in smaller vessels	Build-up on the probe can affect accuracy over time

6. What Are Flow Sensors and Why Do So Many Types Exist?

Flow measurement has more competing technologies than almost any other sensor category, because the right choice depends heavily on the fluid itself clean or dirty, conductive or not, gas or liquid, and how much pressure drop the process can tolerate.

• Electromagnetic – excellent for conductive liquids, no moving parts, minimal pressure drop.
• Ultrasonic – non-invasive (can clamp on externally), good for clean liquids.
• Vortex – works across liquids, gas and steam, robust in demanding processes.
• Differential pressure (orifice/venturi) – a long-proven, simple approach, though it does add some pressure drop to the line.

We’ve had customers standardise on one flow technology across an entire site because it was familiar, only to find it performed poorly on the one line carrying an abrasive slurry that needed a different approach entirely.

7. What Do Position and Displacement Sensors Measure?

These sensors track linear or rotary movement how far something has moved, how far it’s extended, or its angular position. LVDTs (Linear Variable Differential Transformers), rotary encoders, and rod-end sensors all fall in this category.

Case in point: a rod-end load and position sensor

We’ve built rod-end sensors directly into structural pin connections on mobile plant equipment, combining position and load sensing into the connection point itself rather than bolting on a separate bracket assembly. You can see this kind of integrated approach on our Custom Solutions page; it’s often the cleanest way to get position data from a component that was never designed with sensing in mind.

8. What Are Load and Force Sensors?

Load cells and force sensors measure how much weight or mechanical force is being applied, critical for structural monitoring, weighbridges, crane safe working load systems, and fatigue analysis on mobile and fixed plant.

The detail that catches people out is that a load cell’s rated capacity should sit comfortably above the maximum expected load, not right at the edge of it. Running a sensor near its rated maximum shortens its working life and increases drift over time.

9. What Are Proximity and Photoelectric Sensors?

These detect the presence or absence of an object without physical contact: inductive proximity sensors for metal targets, capacitive for a broader range of materials, and photoelectric sensors using a light beam. They’re the workhorse of automation and safety interlocks: counting, positioning, and confirming a guard or gate is closed before equipment is allowed to run.

10. How Do These Sensor Types Combine Into a Sensor Network?

Almost no real site runs on a single sensor type. A typical monitoring system blends several categories from this list: temperature, vibration, and pressure on a piece of rotating equipment; level and flow on the process feeding it; and the value comes from bringing all of it into one coherent picture rather than reading each sensor in isolation.

This is the problem our XTMS platform is built to solve: sensing, communications, logging and viewing as one connected system, with signal conditioning in between to make sure every sensor type, regardless of its native output, lands in the same dashboard in a format the operations team can actually use.

Case study: six sensor types, one dashboard

A recent remote utilities deployment combined pressure, flow, level and vibration sensors from three different manufacturers, none of which shared a communication protocol out of the box. We used signal conditioning to normalise each output and a telemetry layer to bring everything into a single remote dashboard. The individual sensors were all sound technology; the network around them is what turned six separate readings into one operational picture.

Where to Go From Here

Knowing the sensor categories is the easy half of the job. The harder, more valuable half is knowing which combination actually answers the question your operation is asking and building the network around them so the data is trustworthy enough to act on.

If you’re trying to work out which sensor types fit your site, our team at XTRAN is happy to talk it through across sensors, signal conditioning, and the telemetry that ties it all together.
